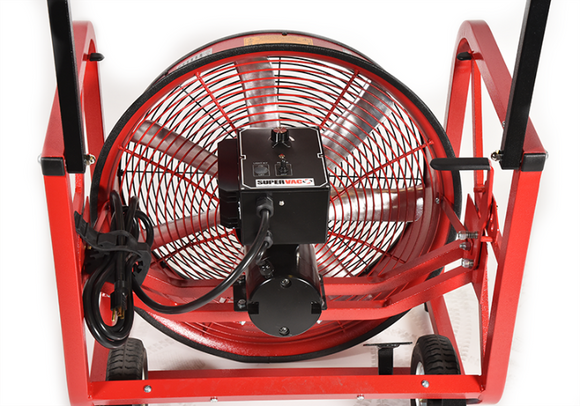

PPV Electric Fan - 7 Series

$0.00
SKU: 716-E2

This PPV electric fan by Super Vac provides the perfect combination of size and power for departments looking for an economical, everyday PPV.

Featuring a durable steel-frame, roll-cage design with 4-position tilt, this PPV has proven itself over the years.

Features:

  • Full Roll-Cage Frame: Protects key components
  • 4-Position Tilt Frame with Lever: Provides -10°, 0°, 10°, 20°
  • Fold-Down Ergonomic Handle: Folds down into frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
  • Flat-Proof Rubber Tires: Eliminates flat tires; rolls up stairs/curbs easily
  • Single-Piece Cast Aluminum Blade: Holds up better than plastic in high heat
  • Precision-Spun Steel Shroud: Provides durability with max airflow
  • Air Cone Guard: Classic design for maximum airflow; StreamShaper Guard optional

Model

Weight

Motor

RPM

Start

Run

Setback

Angle

AMCA Certified Airflow

Dimensions

716-E2

68 lbs

31 kg

Bluffton, single speed, 1 HP, 50/60Hz, 115/230V

1,750

4,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

5,890 cfm

10,007 cmh

20" high

20.50" wide

16" deep

716-EVS

72 lbs

33 kg

RAE, TEAO, variable speed, 1.5 HP, 60/50hz, 115/230V AC

2,500

2,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

9,950 cfm

16,900 cmh

20" high

20.50" wide

16" deep

716-EXP

78 lbs

35.5 kg

Bluffton, single speed – hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC

1,750

4,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

5,890 cfm

10,007 cmh

20" high

20.50" wide

16" deep

718-E2

82 lbs

37 kg

Bluffton, single speed, 1 HP, 50/60Hz, 115/230V

1,750

4,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

6,378 cfm

10,836 cmh

22" high

23.50" wide

19.50" deep

718-EVS

86 lbs

39 kg

RAE, TEAO, variable speed, 1.5 HP, 50/60Hz, 115/230V AC

2,500

2,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

10,744 cfm

18,254 cmh

22" high

23.50" wide

19.50" deep

718-EXP

92 lbs

42 kg

Bluffton, single speed – hazardous location rated for Class 1 Group D, 1 HP, 50/56Hz, 115/230V AC

1,750

4,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

6,378 cfm

10,836 cmh

22" high

23.50" wide

19.50" deep

720-E2

88 lbs

40 kg

Bluffton, single speed, 1 HP, 50/60Hz, 115/230V

1,750

4,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

9,007 cfm

15,302 cmh

25.50" high

26" wide

19.50" deep

720-EVS

92 lbs

42 kg

RAE, TEAO variable speed, 1.5 HP, 50/60Hz, 115/230V AC

2,400

2,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

13,788 cfm

23,426 cmh

25.50" high

26" wide

19.50" deep

720-EXP

98 lbs

45 kg

Bluffton, single speed – hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC

1,750

4,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

9,007 cfm

15,302 cmh

25.50" high

26" wide

19.50" deep

724-E2

104 lbs

47.5 kg

Bluffton, single speed, 1 HP, 50/60Hz, 115/230V

1,750

4,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

13,320 cfm

22,630 cmh

28" high

29.50" wide

21" deep

724-EVS

108 lbs

49 kg

RAE, TEAO, variable speed, 1.5 HP, 50/60Hz, 115/230V AC

2,400

2,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

16,370 cfm

27,815 cmh

28" high

29.50" wide

21" deep

724-EXP

114 lbs

52 kg

Bluffton, single speed – hazardous location rated for Class 1 Group D, 1HP, 50/60Hz, 115/230V AC

1,750

4,000 w 15-amp circuit

1,500w

6 ft

1.8 m

18°

13,320 cfm

22,630 cmh

28" high

29.50" wide

21" deep



Five (5) year warranty.
