Classic Husky® Portable Folding Frame Tanks

$0.00
SKU: ALF-500

Husky® Folding Frame Tanks are the leading folding frame tank for water shuttle operations and rural water supply.

These folding frame tanks are easy to set-up, easy to tear down, and easy to store. From the youngest rookie to the most skilled veteran firefighters Husky's® Folding Frame Tanks were voted the easiest and safest tanks to use. With the superior design, you can empty and fold a tank in mere minutes!

Exclusive Features:

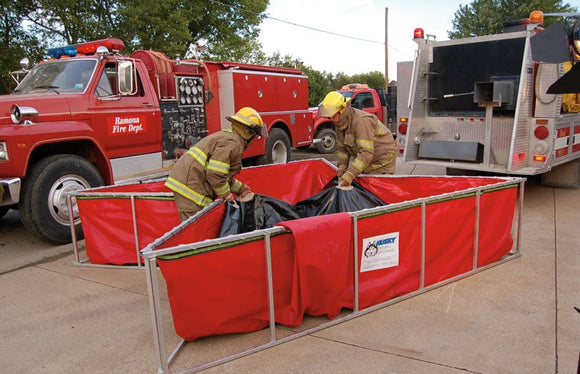

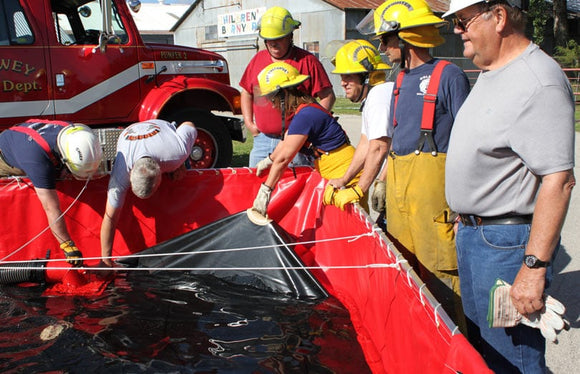

  • Exclusive Easy Lift Handles on the floor of the liner make the Folding Frame Tank the easiest and quickest to fold and permits easy removal of any standing water.

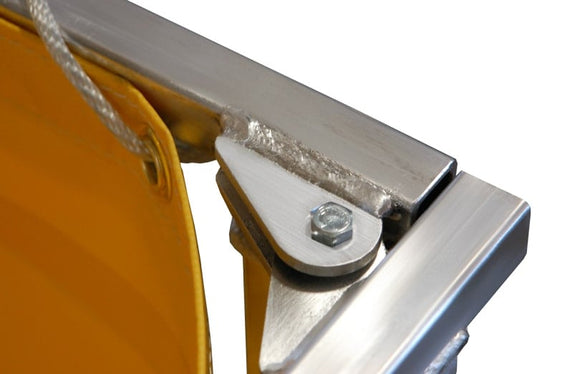

  • Pinch-free frame is designed with safety in mind!
  • Husky® duty floor made of acrylic-coated 28 oz. PVC is soft, pliable and foldable.
  • Quick Release Drain Sleeve eliminates fighting with ropes.
  • Our Double Folding Frame Tanks can be stored in half the space!
  • The Quick Dump option saves you time!
  • Replacement frames, steel or aluminum.
  • Replacement liners, all materials available.
  • Offered with our patented EXLON® material.

Available with Aluminum or Steel Frames.

Husky frame materials are carefully chosen to give the best strength yet keep the weight to a minimum. Our aluminum frame material is specially designed with radius corners to help protect the liner rope, the liner and the firefighters’ hands. All Husky® frames are pinch free!

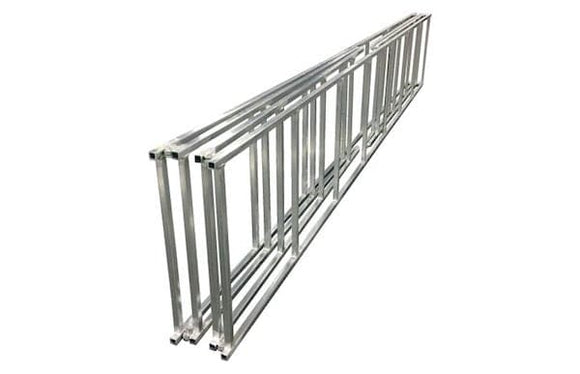

Aluminum Frame:

  • 1" x 1" x 1/8" 6061 square tube aluminum with radius corners
  • Superior heavy duty laser cut hinge
  • Approximately 25% weight savings over steel
  • Aluminum MIG welded construction, guaranteed
  • Available in round tube schedule 40 6061-T6 aluminum
  • Folds down to 7 1/2"

Steel Frame:

  • 7/8" od., 14 guage round tube steel (HREW P&O)
  • Superior heavy duty laser cut hinges
  • MIG welded construction, guaranteed
  • Available in 3/4" x 3/4" 14 guage square tube steel
  • High quality PPG paint used for finish (Gloss Black)
  • Folds down to 7"

Liner Materials Options & Colours:

  • Vinyls: 22 oz., 22 oz. sides with 28 oz. floor, 30 oz.
  • Colours - 22 oz: Red, Yellow, Orange, Blue, Green, White, Black, & Lime Green
  •                 30 oz: Red, Yellow, Orange, Blue, Black

Don't see the capacity you're looking for? Custom sizes & fabrication available.

 Capacity Open Dimensions Folded Dimensions Alum. Frame Weight Steel Frame Weight
500 Gal. 5'8" x 5'8" x 29" 7" x 5'8" x 29" 68 lbs. 90 lbs.
750 Gal. 7'0" x 7'0" x 29" 7" x 7'0" x 29" 79 lbs. 97 lbs.
1000 Gal. 8'3" x 8'3" x 29" 7" x 8'3" x 29" 96 lbs. 116 lbs.
1500 Gal. 10'3" x 10'3" x 29" 7" x 10'3" x 29" 109 lbs. 138 lbs.
2100 Gal. 11'3" x 11'3" x 29" 7" x 11'3" x 29" 124 lbs. 154 lbs.
2500 Gal. 12'3" x 12'3" x 29" 7" x 12'3" x 29" 135 lbs. 169 lbs.
3000 Gal. 13'3" x 13'3" x 29" 7" x 13'3" x 29" 149 lbs. 185 lbs.
3500 Gal. 14'3" x 14'3" x 29" 7" x 14'3" x 29" 167 lbs. 205 lbs.
4000 Gal. 15'3" x 15'3" x 29" 7" x 15'3" x 29" 178 lbs. 223 lbs.
5000 Gal. 17'3" x 17'3" x 29" 7" x 17'3" x 29" 215 lbs. 269 lbs.
